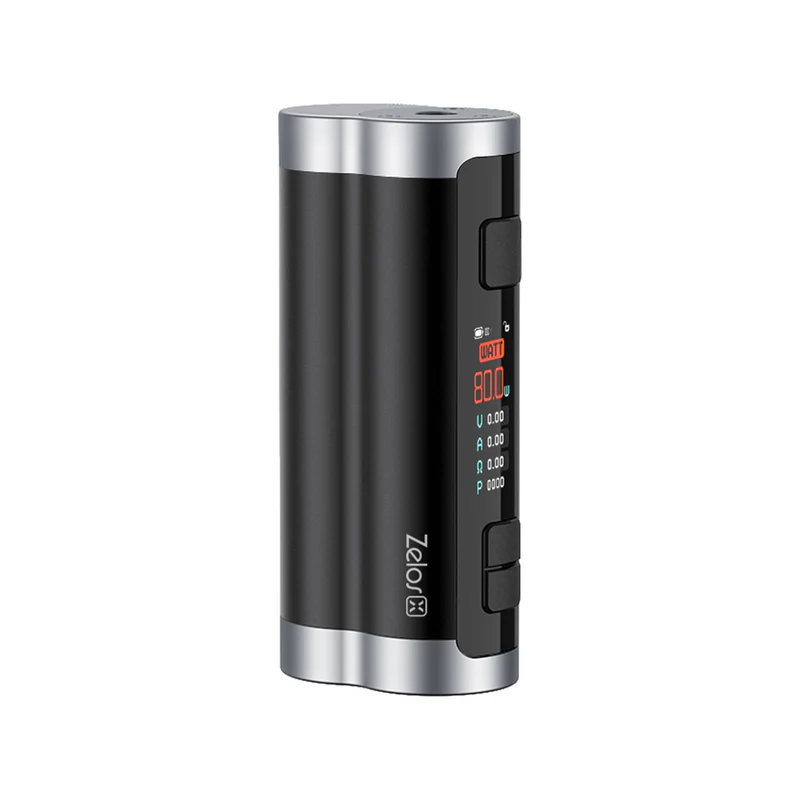

Aspire Zelos X Mod

Aspire Zelos X Mod

🔧 Main Specs & Build

• Battery & Power: Powered by a single external 18650 battery (not included), the mod delivers up to 80 W via USB‑C charging at 2 A.
• Body: Sturdy zinc‑alloy and aluminum chassis measuring 83 × 37.5 × 24.5 mm, designed to feel great in hand.
• Screen: 0.96″ full‑color TFT display with adjustable brightness and color themes.

⚙️ Modes & Chipset

• The Smart ASP chipset supports five modes: Wattage, Voltage, Bypass, Temperature Control (Ni/Ti/SS), and CPS (curved wattage).
• Wattage operates from 1–80 W; voltage from 0.5–8.4 V; temperature control range is 200–600 °F (100–315 °C); it works with coils between 0.1–3.5 Ω.
• Features include 10-second cutoff and several safety protections: over-discharge, overheat, over-charge, short circuit, low voltage, etc.

💪 Strengths & Feedback

• Compact yet versatile: Great blend of power modes and portability—ideal for both sub-ohm and TC setups.
• MTL-friendly pairing: Frequently paired with the 22 mm Nautilus series, offering a satisfying restricted direct lung or mouth-to-lung experience.
• Reliable day-to-day: Reddit users describe it as a solid, long-lasting mod—often their go-to choice.

⚠️ Known Issues & Considerations

• USB port placement: Located on the bottom, some users find this inconvenient .
• Durability caveats: Though generally sturdy, there are occasional reports of battery door or chassis wear with heavy use .
• No TCR mode: Offers standard TC only; some advanced users might look for full TCR tuning.

👤 Real User Insights

“Made of zinc and aluminium, it’s a very pretty mod… sits very comfortably in the hand.”
“I also have an armour pro… I sold [it], but I wish I hadn’t. It is a great mod to pair with a nautilus…”

🎯 Who It’s For

• ✅ Vapers seeking a compact, powerful single-cell mod with both wattage and TC modes.
• ✅ MTL & RDL users—ideal when paired with tanks like Nautilus 3.
• ⚠️ Beginners should be aware of battery handling requirements—external 18650s need proper storage and maintenance.

💡 Tips for Best Use

1. Use a good 18650 battery—High-drain (20 A+) recommended, charged externally for safety.
2. Monitor the USB-C port for wear—avoid rough plugging.
3. Try CPS mode to personalize your power curve for more nuanced hits.
4. Pair with Nautilus tanks, which work seamlessly with the mod for smooth MTL vaping.

🧭 Bottom Line

The Aspire Zelos X strikes a strong balance: compact, stylish, and versatile, offering 80 W output alongside TC, CPS, and safety protections—all powered by a swappable 18650 cell. Suitable for both beginners and experienced vapers. Be mindful of battery safety and the bottom USB port design.
